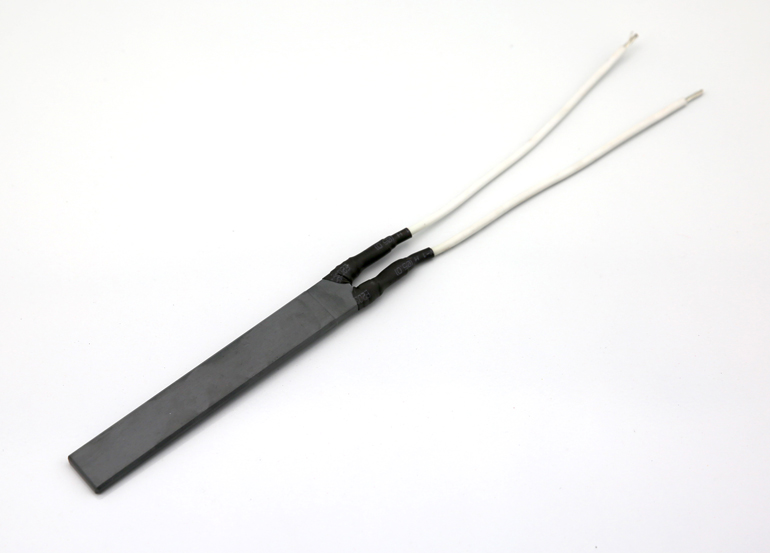

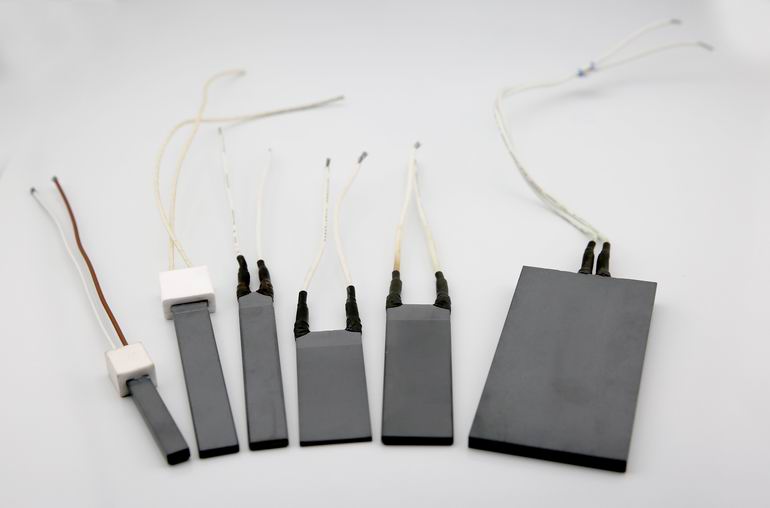

  Used in water and liquid heating silicon nitride ceramic heating


按此在新窗口浏览图片

按此在新窗口浏览图片

按此在新窗口浏览图片

Rated voltage: 230 v, 230 v, 110 v, 120 v

Frequency: 50/60 hz

Rated power:

DGC01:500-2500 - w DGC04:500-2500 - w

DGC02:500-2500 - w DGC05:500-2500 - w

DGC03:500-1200 - w DGC06:500-1500 - w

The maximum power: 3500 w

Life: 15000 hours

Insulation dielectric strength: 2500 v, 50 hz, at room temperature for 1 minute without breakdown phenomenon

Leakage current: under normal working state is not greater than 0.025 break in the water is not more than 10 after ma ma

Maximum size is: length x width x = 140 * 35 * 4 (mm)

Acid corrosion resistance: 5% boiling 6 h in sulfuric acid solution, the corrosion rate of less than 10 g/m2, h

Ability of resistance to alkali corrosion: 30% sodium hydroxide solution boil 6 h, corrosion rate is less than 0.6 g/m2, h

Liquid heating silicon nitride ceramic electric heating element applicable medium: liquid and water

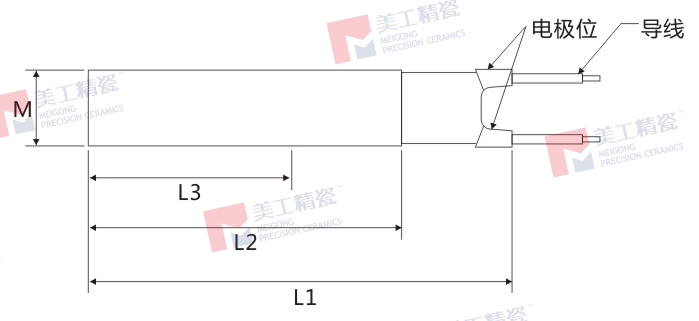

序列号

The serial number

Wmm

L1

mm

L2

mm

L3

mm

备注

note

DGC01

17

90

111

130

±1

DGC02

17

80

100

120

±1

DGC03

17

43

60

79

±1

DGC04

30

50

67

85

±1

DGC05

49

35

45

65

±1

DGC06

30

65

85

105

±1
